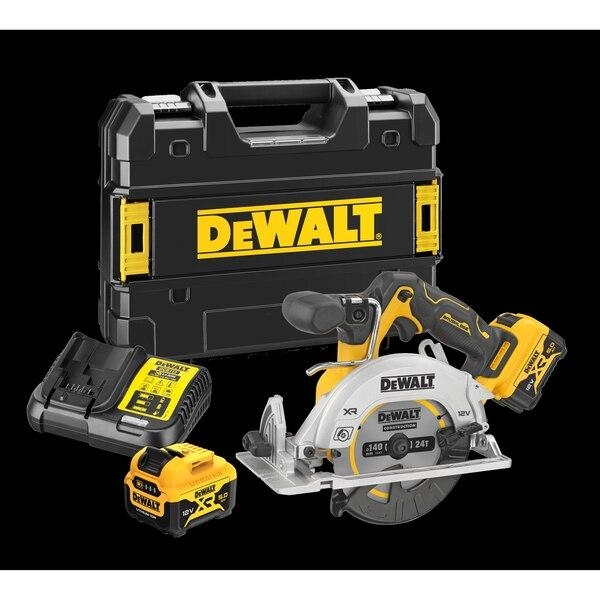

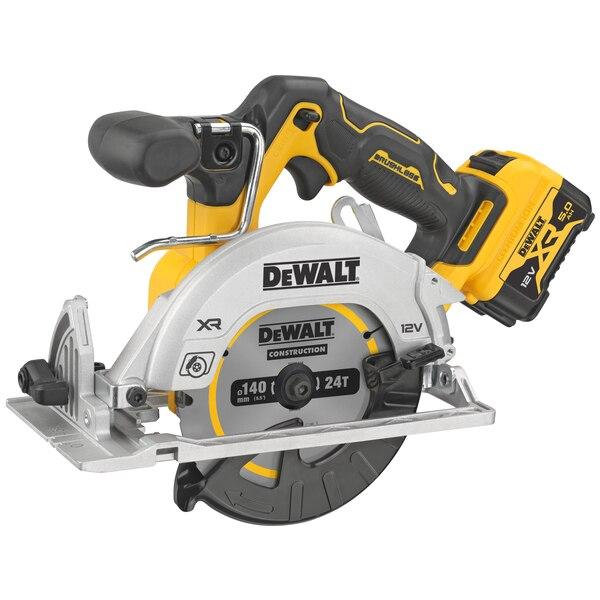

DCS512 12v Circular Saw
- DEWALT Brushless Motor for extended run-time, reliability & durability
- Electronic module with battery pack identification for increased power and productivity
- Extremely durable tool design, including a cast aluminum base for repetitive, accurate cuts
- Variable adjustment of the bevel angle to 50 degrees
- Optimum balance for safe, fatigue-free operation
- Lock off switch and electronic motor brake for additional control and work safety
- Additional handle for safe two-handed work
- Direct compatibility with DEWALT AirLock system for easy, secure connection to extraction hose
- Convenient storage on the jobsite with the built-in rafter hook
- Dust blower clears dust and debris from cut line
- LED work light for improved cut line visibility
Specifications
WEIGHT: 2.2 KG
NO LOAD SPEED: 3600 RPM
BLADE DIAMETER: 140 MM
MAX. DEPTH OF CUT AT 45º: 33 MM
BEVEL CAPACITY: 50 º
BLADE BORE: 20 MM
Max. Depth of Cut at 90º: 47 mm
Length: 292 mm
Height: 155 mm
Hand/Arm Vibration: 2.5 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Sound Pressure: 89 dB(A)
Sound Pressure Uncertainty: 4 dB(A)
Sound Power: 100 dB(A)
