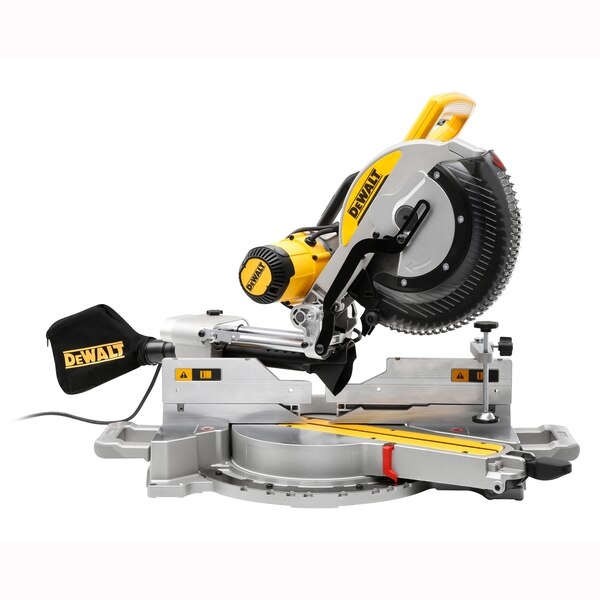

DeWALT 305mm Compound Slide Mitre Saw with XPS – DWS780

DWS780

• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool
• New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49 degree left and right
• Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0 – 50 degree left and 0 – 60 degree right
• Long life Accuracy in Table and Fence Design
• The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
• Linear horizontal rails utilize bronze guides to provide maximum precision when cutting materials up to 345 mm wide
• Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the job site
• Outstanding dust control and deflection away from cutting area
• Electronic speed control for adjusting cutting speed when cutting materials other than wood
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications

Specifications

• Bevel Capacity: 49 degree
• Mitre Capacity (Right): 60 degree
• Mitre Capacity (Left): 50 degree
• Hand/Arm Vibration (Cutting Wood): 2.5 m/s²
• Maximum Cutting Capacity (45/45 degree): 212 x 76 mm
• Maximum Cutting Capacity (90/45 degree): 211 x 112 mm
• Maximum Cutting Capacity (90/45 degree): 244 x 76 mm
• Maximum Cutting Capacity (90/90 degree): 303 x110 mm
• Maximum Cutting Capacity (90/90 degree): 345 x 76 mm
• Maximum Cutting Capacity (45/90 degree): 268 x 63 mm
• Maximum Cutting Capacity (45/90 degree): 345 x 44 mm
• Power Input: 1675 watt
• Power Output: 960 watt
• Uncertainty K 1 (Vibration): 1.5 m/s²
• Sound Power Level: 100 dB(A)
• Sound Power Uncertainty: 3 dB(A)
• Sound Pressure Level: 93 dB(A)
• Sound Pressure Uncertainty: 3 dB(A)
• Length: 770 mm
• Height: 396 mm
• Width: 470 mm
